Earthing & lightning protection,
structured for project requirements

Ahmedabad-based earthing installation, earth resistance testing, lightning protection and maintenance for project sites in Gujarat. Call +91 98336 23880 to discuss your site.

Core technical
services

From defined earthing works to complete lightning-protection scopes, we coordinate installation, testing, maintenance and project material supply with clear documentation for the agreed scope.

Service images are illustrative visual references, not photographs of named PrimeEarth projects. Site scope and methods are agreed for each project.

Illustrative earthing installation with an electrode, copper bonding strip and inspection chamberField installation

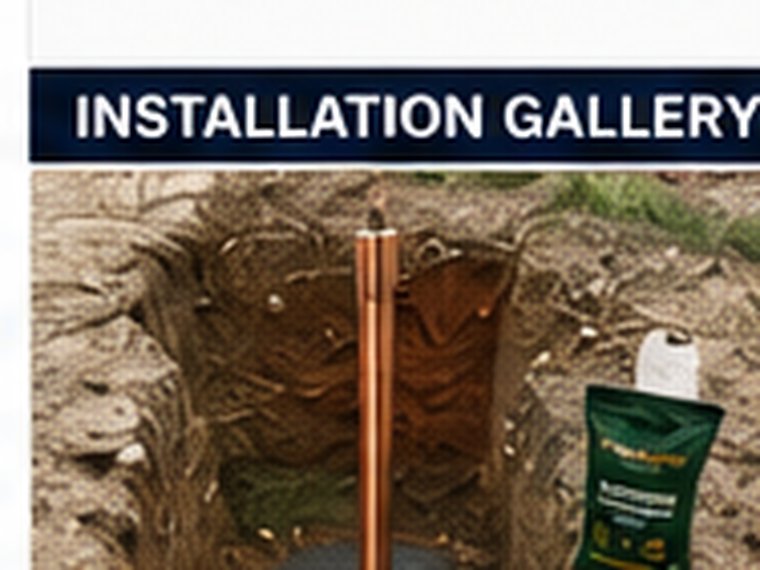

Earthing System Installation

Earthing installation using copper-bonded rods, GI or copper conductors, earthing enhancement materials, inspection chambers and suitable connection hardware. The arrangement is selected to suit the project design, site conditions and applicable requirements. Earthing installation in Ahmedabad.

Copper bonded rodsGI stripChemical compoundIS 3043
Discuss this requirement

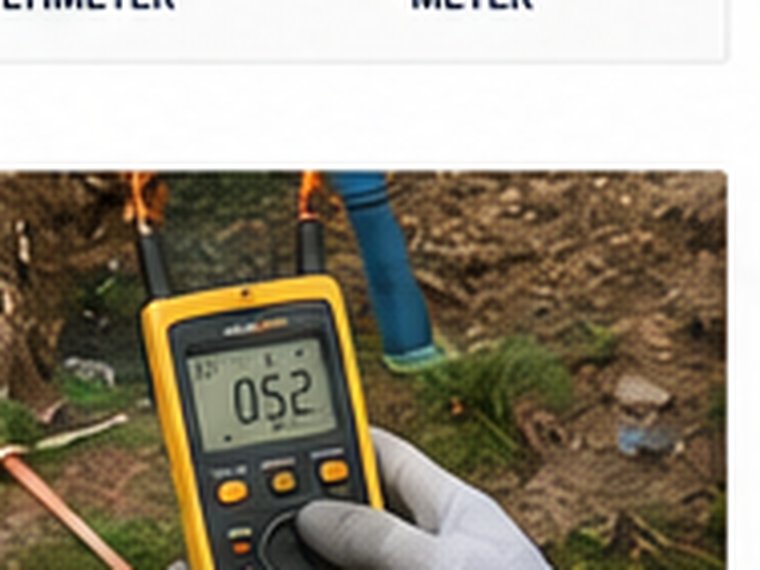

Illustrative earth-resistance test setup with a meter, test leads and auxiliary stakesTesting & commissioning

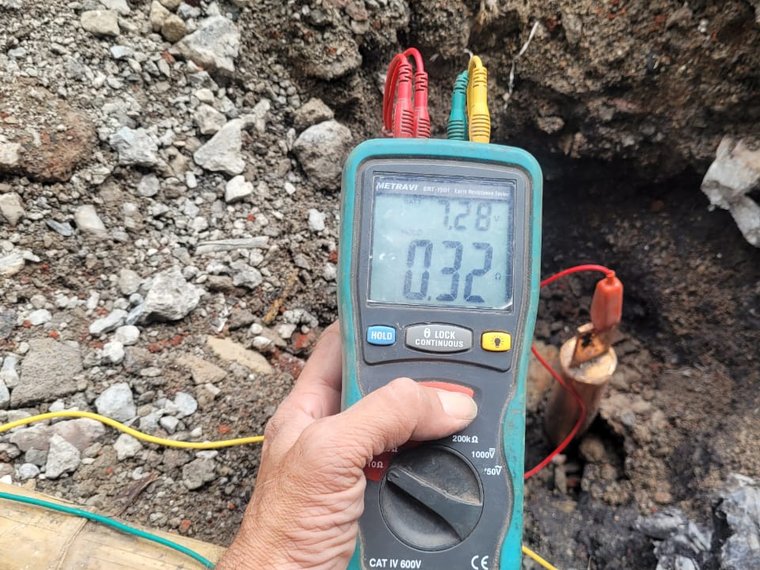

Earth Resistance Testing

Earth resistance testing using suitable calibrated instruments and a method appropriate to the site and system. Individual electrode or combined-system measurements can be documented for the project record. See testing scope and visit requirements.

Fall-of-potentialCalibrated instrumentsApplicable IS 3043 methods
Discuss this requirement
Illustrative rooftop air terminal and secured external down-conductor routeLightning protection

Lightning Protection Systems

External lightning-protection installation using air terminals, down conductors, test joints, bonding and earth-termination components as defined by the project design. Applicable IEC 62305 requirements and the selected protection method are considered within the agreed scope. Industrial lightning protection installation in Gujarat.

IEC 62305Air terminalsDown conductorsRing earth
Discuss this requirement

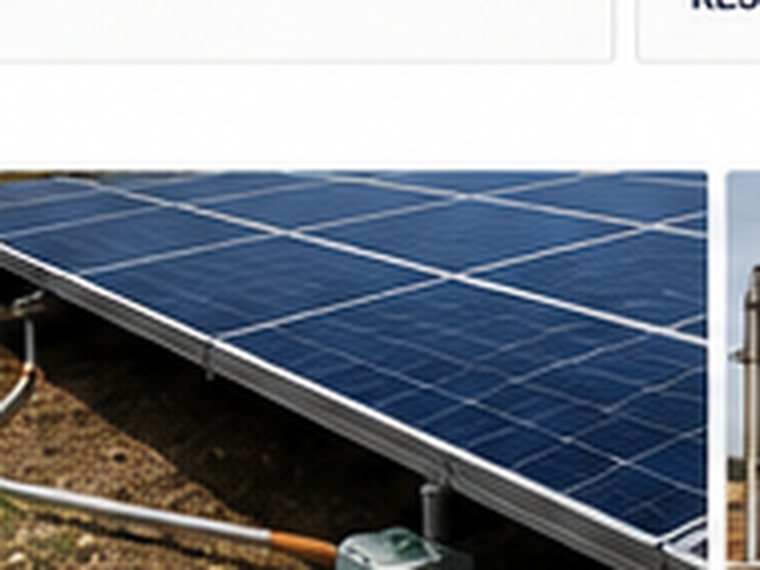

Illustrative bonding connection between solar-module frames and a protective conductorSolar PV earthing

Solar PV Earthing

Earthing and bonding for rooftop and ground-mounted solar PV installations, including structure bonding, inverter/equipment earthing and array-frame bonding. The detailed arrangement follows applicable electrical regulations, project specifications, equipment requirements and relevant standards.

Solar PV / electrical requirementsApplicable PV / electrical standardsStructure bonding
Discuss this requirement
Illustrative close-up of accessible copper bonding connections in an inspection chamberInspection & maintenance

Annual Maintenance

Periodic earthing system inspection, resistance testing, connection checks, maintenance actions where required, and project documentation. Maintenance contracts are available for commercial and industrial clients.

Annual contractsInspection & testingMaintenance
Explore maintenance & AMC
Copper and galvanized-steel flat-bar earthing conductorsMaterials & bonding

Material Supply

Earthing materials including copper-bonded rods, GI and copper strip, earthing compound, clamps, inspection chambers, and air terminals, supplied to the applicable product and project specification.

Product specificationSupplier documentationProject supply
Discuss this requirement
Request the 32-page catalogue

What we install & supply

Earthing and lightning-protection materials are supplied to the applicable product specification, project requirement and documentation available from the manufacturer or supplier.

Product visuals are illustrative, not manufacturer catalogue images or an assurance of stock. Make, model, material, rating, dimensions and availability vary by supplier and project; confirm final selection against current product documentation.

Inspect a product image or add materials to your enquiry. Final specification and availability are confirmed by quotation.

Illustrative copper-bonded solid-steel earth electrode rod assembly with tapered driving point and threaded coupling

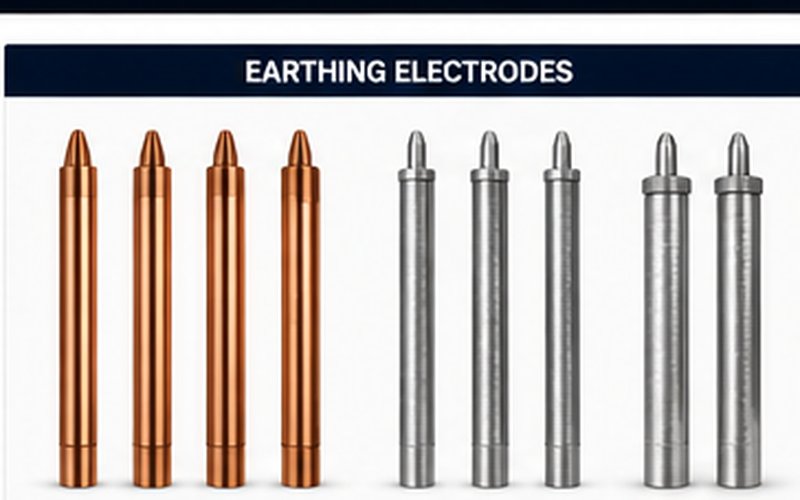

Copper-Bonded Rod Assembly
High-carbon steel core with copper bonding. Copper-bond thickness and construction are supplied according to the applicable product datasheet or test certificate. Available diameters depend on the selected product.
Rod length, diameter, coupling and copper-bond details are confirmed against the selected product documentation and project specification.

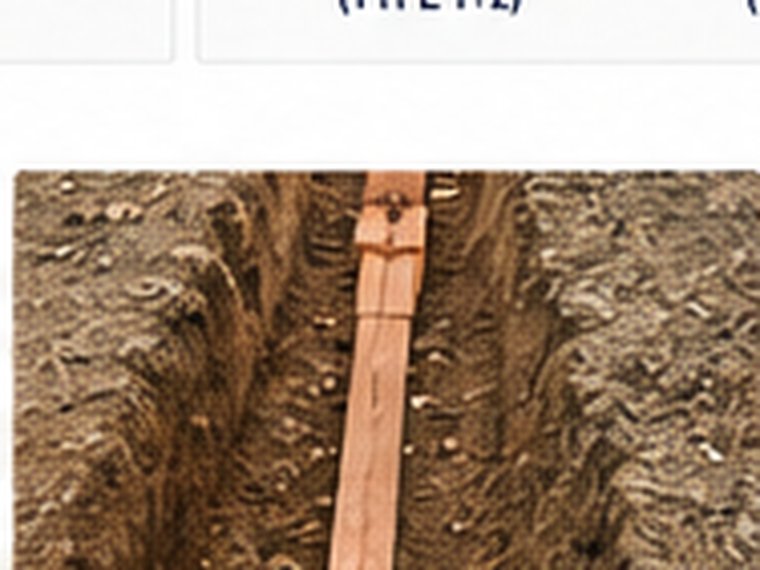

Rolled copper and galvanized-steel flat-bar earthing conductors

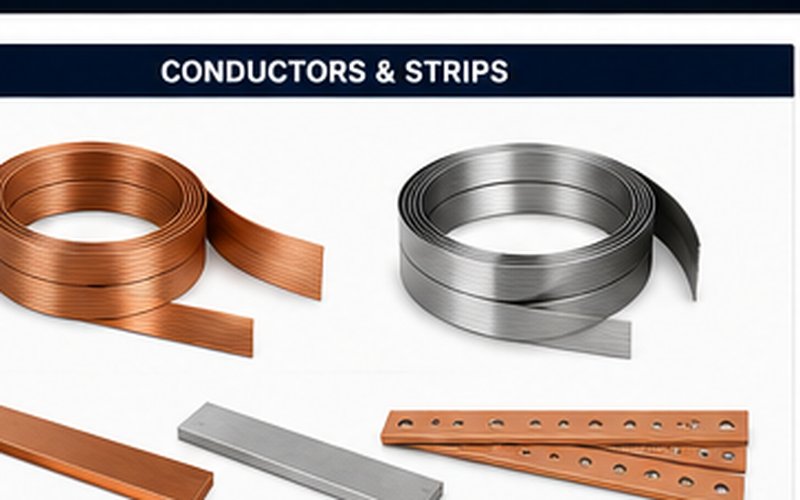

Copper & GI Strip Conductors
Flat-strip conductors in copper or hot-dip galvanised steel, supplied for earthing and bonding where the selected material suits the design.
Material, section, dimensions and coating requirements follow the project specification and selected product documentation.
Unbranded pail, sack and sample of earthing enhancement material

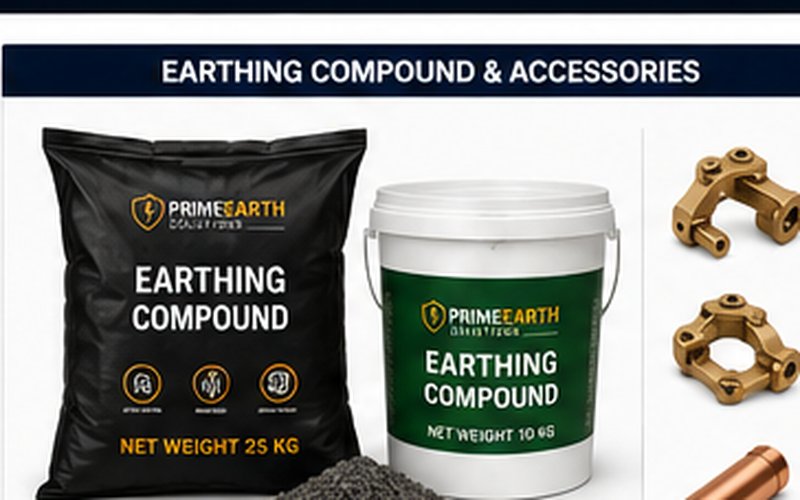

Earthing Compound
Earthing enhancement materials selected according to electrode type, soil conditions and the applicable product specification. Available formulations vary by supplier and project requirement.
Application, packaging and product data are confirmed against the selected supplier documentation.
Conventional stainless-steel air-terminal rod and mounting base
LPS Component

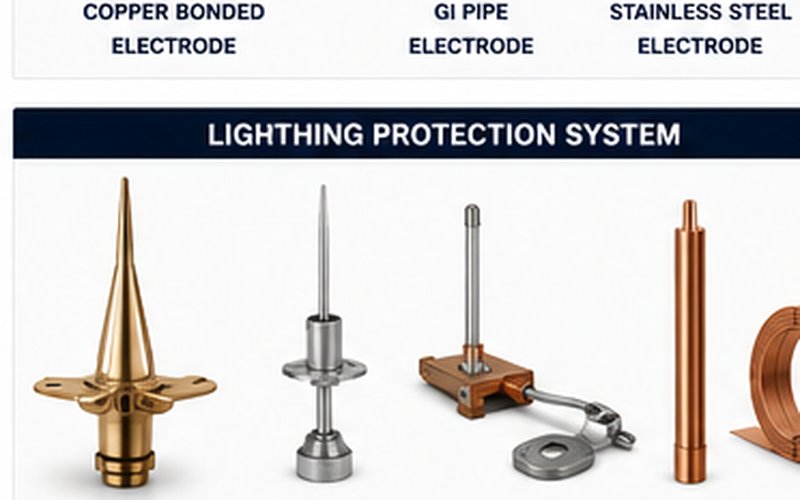

Air Terminal (Finial)
Air-terminal components used as part of an external lightning-protection system. Material, dimensions and arrangement are selected according to the project design and applicable protection requirements.
Material and dimensions depend on the selected component and project design.
Unbranded modular surge-protective devices mounted on a DIN rail
LPS Component

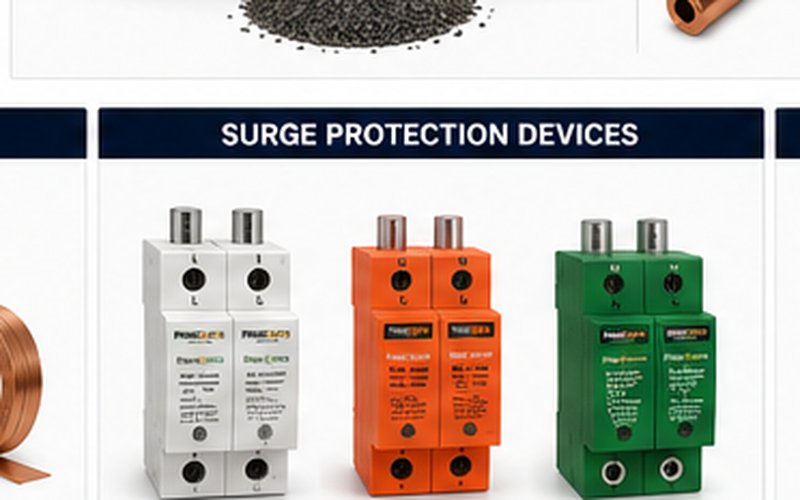

Surge Protection Device
Limits transient overvoltage from lightning and switching events as part of a coordinated surge-protection system. Selection depends on the system voltage, installation arrangement, expected surge environment and equipment requirements.
Device class, ratings and coordination are selected for the system and confirmed against the product datasheet.

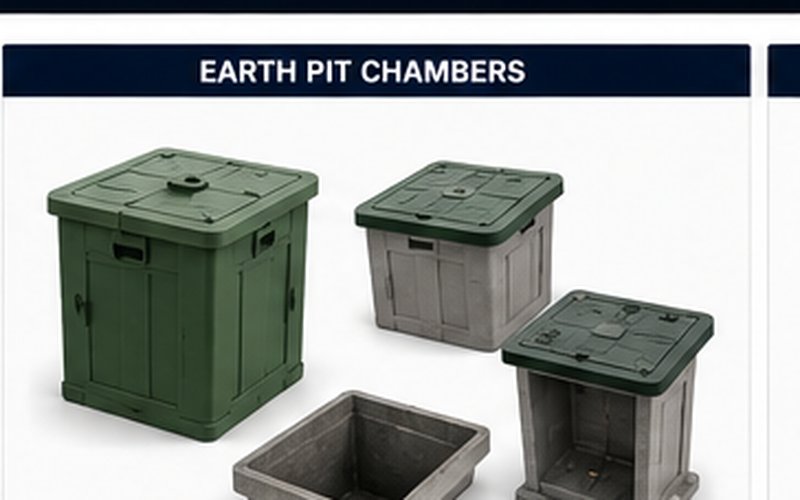

Concrete earth inspection chamber with a fitted cover and grounding symbol
Maintenance Access

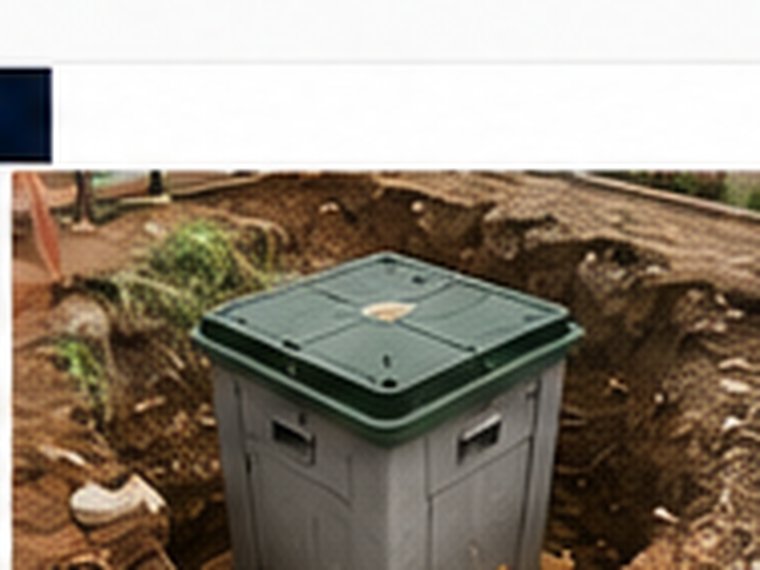

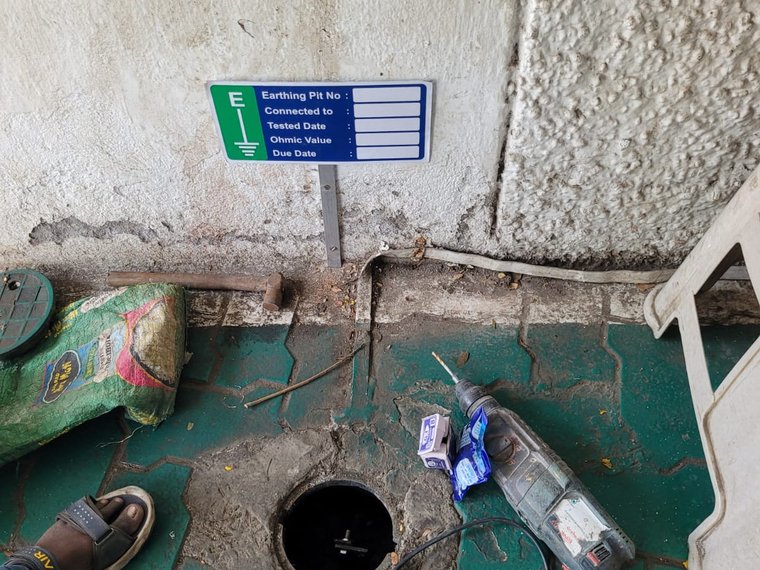

Inspection Chamber
Precast concrete or PVC chamber housing the electrode connection point, with a marked cover for future resistance testing without excavation.
Chamber material, dimensions and cover duty are selected for the installation and access conditions.

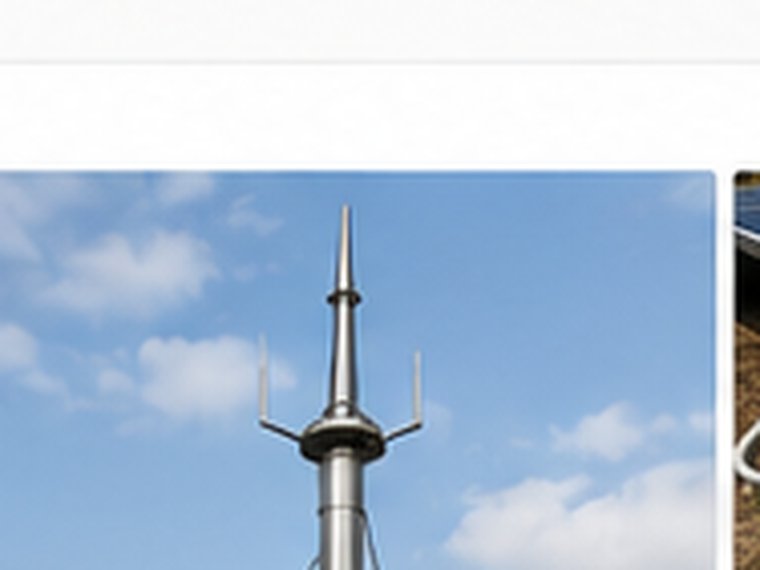

Original illustrative studio image of an unbranded ESE air terminal with a stainless-steel head and mounting stem
Lightning protection

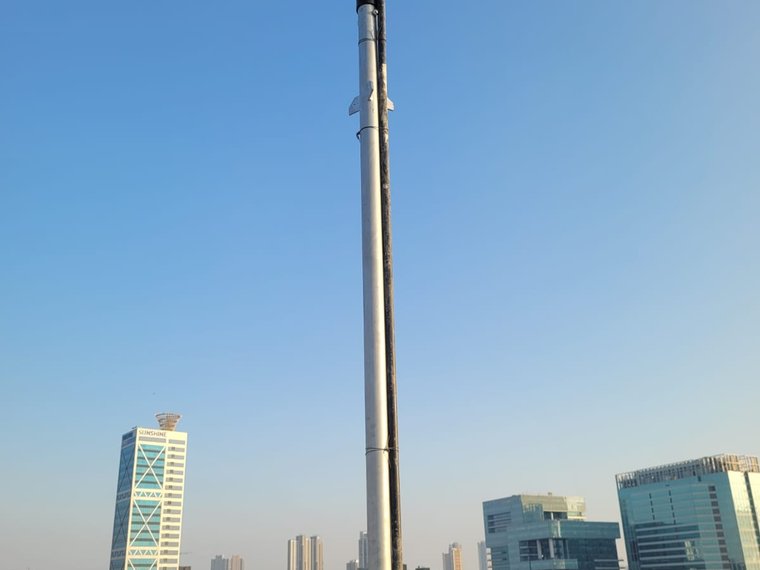

ESE Air Terminal
Early streamer emission air terminals can be supplied where the project specification and authority accept the selected design basis.
Confirm the model, declared performance, test reports and applicable standard. An ESE radius must not be assumed to be an IEC 62305 protection method. Understand the distinction.
Representative copper-alloy and galvanized-steel clamps, connectors and cable lug
Hardware

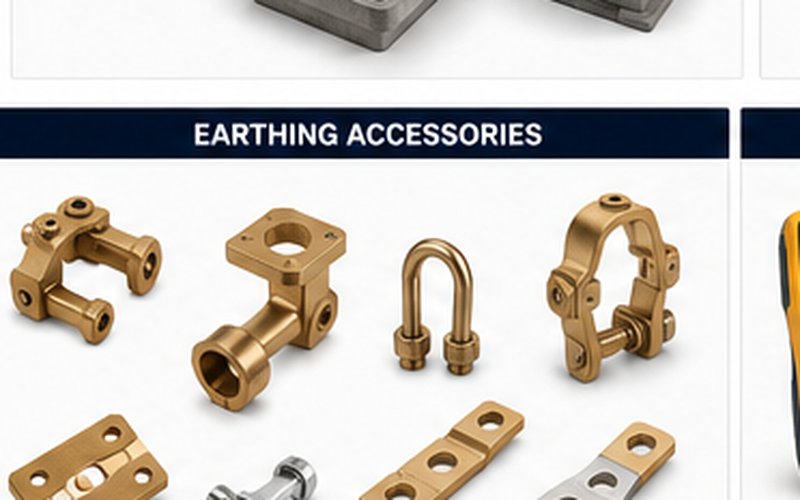

Clamps & Connectors
GI and copper clamps, bonding connectors, and cable lugs for joining conductors to electrodes, structures, and equipment bodies.

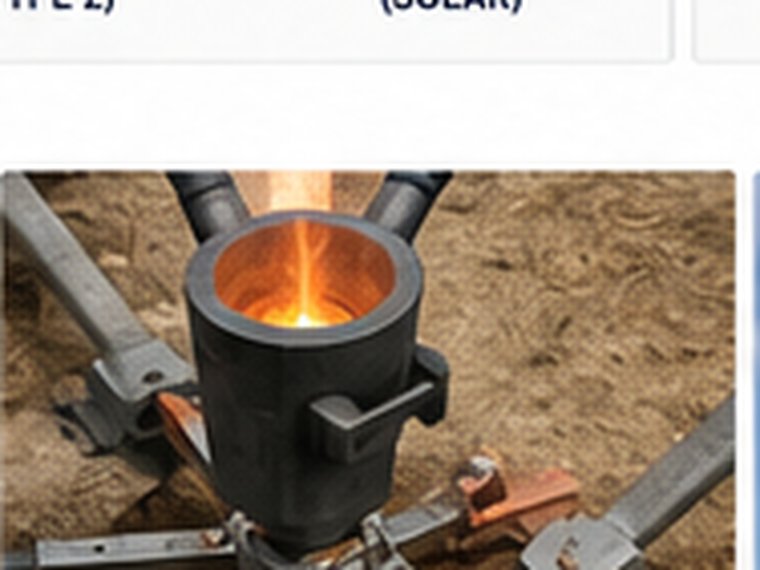

GI & copper · Bolted and exothermic-weld options

From site visit to test report & documentation

01
Site Visit & Assessment
We review available soil and site information, existing systems, and project requirements. Where a field assessment is needed, the location, access and scope are agreed with the customer before a visit is scheduled.
02
Written Quotation
Detailed written quotation specifying electrode type, depth, conductor sizing, compound quantity, applicable standards, and total cost. Scope and commercial terms are documented before work begins.
03
Installation
Installation is carried out to the agreed scope using the specified materials and appropriate workmanship. Inspection access is provided where included in the design or project requirement.
04
Testing & Commissioning
Where testing is included, earth resistance is measured at the appropriate stage using a suitable method and instrument. The test method and readings are documented for the project record.
05
Documentation Handover
Relevant test readings, electrode details, material information and project notes are documented and handed over according to the agreed scope. Statutory or authority documentation remains subject to the applicable installation and authority requirements.
